| 10535 |
|
| 75 - 76 VEGA Transmission cross member |
|
| Chevrolet engines w/ 700R4, 4L60E (4bolt tail), 5
speed transmissions |
|
|
|
|
|
|
Parts included; |
|
|
|
|
|
|

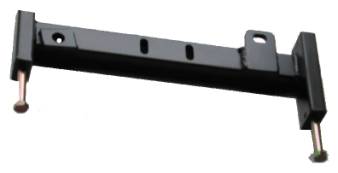

Transmission cross member |
|
|
|
|
|
|
|
Parts needed; |
|
|
Transmission cushion,
stock, #122353 / #123125 Has D.O.T.
safety hook. |
|
|
|
|
|
|
|
|
|
Installation
procedure. |
|
| 1. |
Remove stock cross
member. |
|
|
| 3. |
Install
transmission cross member. Use factory bolts, washers, lock washers &
nuts. Do not tighten. Install the right and left rear bolts. Torque to
factory specs. |
|
|
|
| 10. |
Check for
floor pan to transmission clearance. Lift transmission, check for minimum of
1/4" clearance between cushion and cross member. |
|
|
|
|
|
|
|
|
|
|
|
|
|
