LUV V6 Installation |
|
Chevrolet 4.3L V6
SB engines with TH350, 700R4, 4 speed transmission. |
|
|
|
Parts needed; |
|
|
Engine adapters; |
|
122378 transmission
mount. |
|
|
72-75
#10215, 76-80 #10210 |
|
Use stock 4.3L starter
& flywheel. (DL6416S) |
|
2
x 122267 or 122142 engine mounts. |
19” x 22” Chevy style
alum radiator. |
|
|
Engine adapter bolt kit; |
|
Fan, 15”/17” (Staggered
seven blade) |
|
|
pn
10220 for 72 -75 pn 10225 for 76 - 80 |
Stock oil filter. |
|
|
Transmission
adapters; |
|
Oil cooler adapter can be
used. |
|
|
TH350/4spd
# 10230, 700R4 # 10235 |
Lower hose Dayco M30 (May vary) |
|
10240
bolt kit, for 10230 trans adapter. |
Upper hose Dayco
M21. (May vary) |
|
10245
bolt kit, for 10235 trans adapter. |
|
|
|
|
|
|
|
Installation procedure. |
|
|
|
1.
Remove
Hood. Mark and disconnect all wires, hoses, linkage, etc. |
|
2.
Drain fluid
responsibly, remove radiator. |
|
3.
Remove
existing engine and trans. Clean engine compartment. |
|
4.

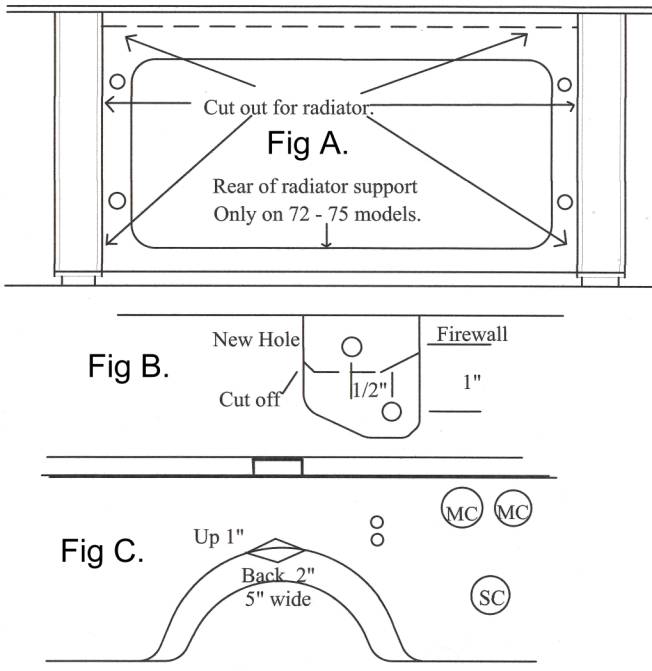

Trim for
radiator. Fig A. |
|
5.
Remove emergency brake nylon wheel from bracket on fire wall. |
|
|
6.
Drill new hole back at the same angle, back 1” and to the right ½”.
Fig. B |
|
7.
Use the spacer from the wheel only with the cable installed. |
|
|
A small sliding door roller may be
used. |
|
|
8.
A 1”
indentation is needed in center of tunnel. Fig. C |
|

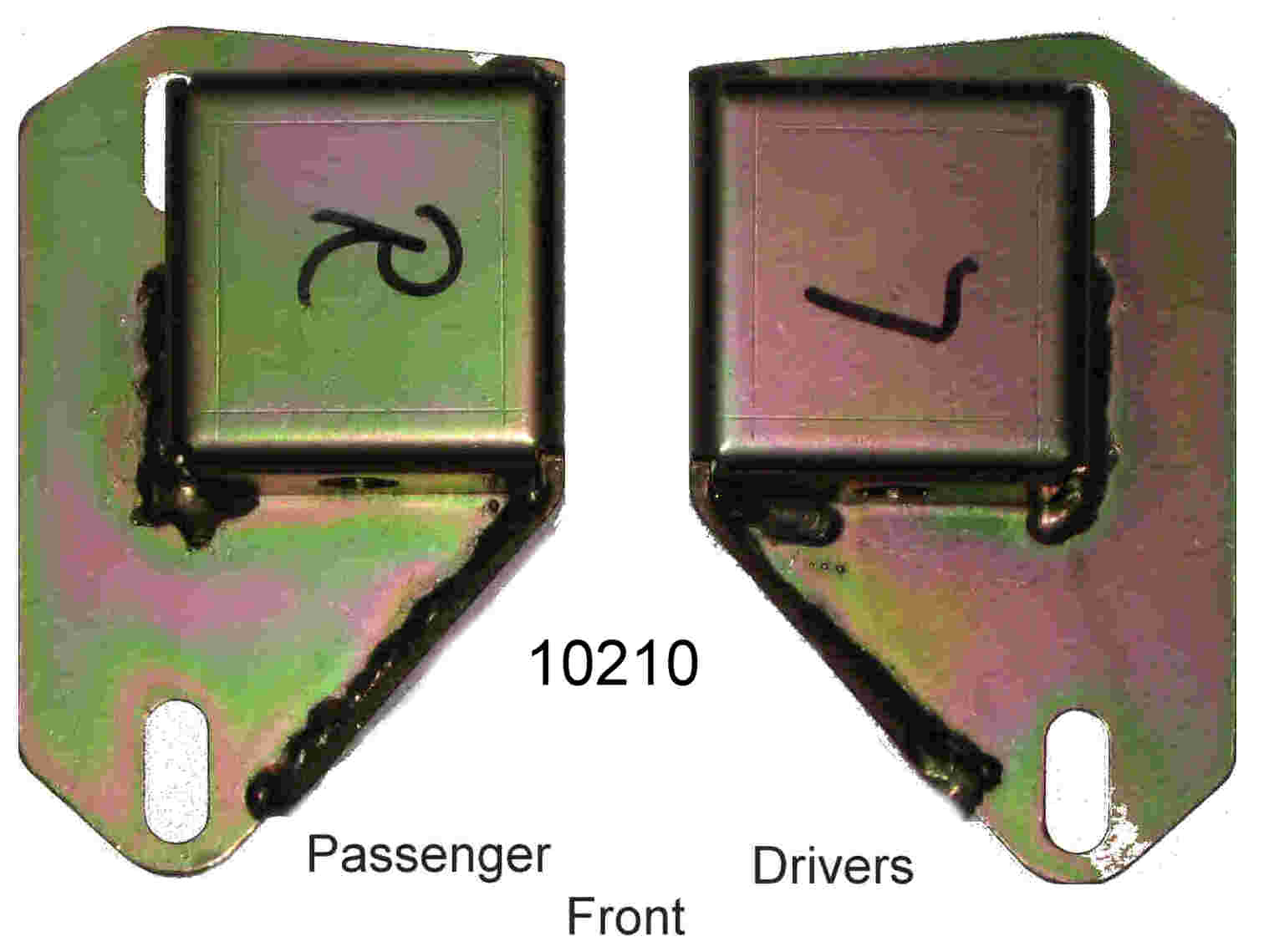

9. #10210 Install engine adapters marked R/L. Use bolt kit pn 10225 Fig D. |
|
Boxed section should be mounted down
and to the rear. |
|
|
10. #10215 Install engine adapter, mark holes
in lower section on frame, drill 3/8". |
|
duplicate on other side. Use 1"
x 3/8" bolts with nylock nuts on bottom. Fig E. |
|
11. Install engine & transmission cushions.
Use bolt kit pn 10225 / 10240 or 10245 |
|
12. Install engine & transmission as a unit. Guide over torsion
bar crossmember. |
|
13.
Install transmission
adapter. Start all bolts then tighten. |
|
14. Use stock heater hoses, control valve & cable. Hoses may be
shortened at firewall. |
|
|
Engine mounts are slotted for slight
fore and aft movement for clearance. |
|
|
|
© Automotive Component Engineering 2009/12 |
|
|
1/6/2012 |
|
|
Return to
Instructions index |
|
|
|
|
|
|
|
|
|
|
|
Fig D. |
|
Fig E. |
|
|
|
|
|
|
|
|
|
