Engine swap components

LSx ENGINE SWAP COMPONENTS

Engine conversion components, for the street off road or race track, designed for the experienced and non experienced installer. With over 48 years of experience, we provide you a conversion that is reliable and with the look of a factory installation. All the critical engineering is done. Components are designed for correct engine placement, balance, strength, longevity and weight bias, for many years of enjoyable use. Most parts are bolt in for ease of installation and require the absolute minimum of cutting or welding. Complete with full, easy to understand instructions.

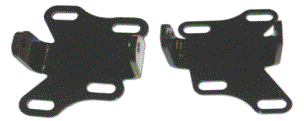

Chevrolet LSx to SB V8 mount adapters 4.8, 5.3, 5.7, 6.0, etc.

Install a LSx V8 engine. Use original or after market, 3 bolt engine and frame brackets. 2 adapters in one. Bell housing flange is in stock position or engine can be moved 1/2" forward. Block bolts and Instructions included. Zinc plated w/ gold iridite.

Pair

Part # 10710

$ 81.35

LSx Hex head adapter and engine cushion bolts

Correct metric size, thread and length bolts for attaching LSx adapters or cushions to LSx block.

Set of four

Part # 10712

$ 3.64

Chevrolet LSx engine mount shims.

These go between block and cushion. Helps with oil pan, cross member or header clearance and proper engine angle. Raises engine approx .120 inches. Designed to clear tab on stock mount. Zinc plated.

Pair

Part # 10713

$ 11.07

LS1 engine thru mount bolts.

Correct metric size, thread and length bolts for attaching LS1 stock engine cushions #123064 or our #10740 urethane cushions to frame brackets.

Part # 10714

$ 9.78

Chevrolet LSx to 4.3L V6 mount adapters 4.8, 5.3, 5.7, 6.0, etc.

Use V6 original or after market, 3 bolt engine and frame brackets. Bell housing flange is in stock position or engine can be moved 1/2" forward.

Chevrolet LSx to SB V8 engine adapter 2" Forward

Use V8 original or after market, 3 bolt cushion and frame brackets. Bell housing flange is 2" or 2 1/2" forward of stock position.

Block bolts, Instructions included. Zinc plated / gold iridite.

Pair

Part # 10715

$ 75.76

LSx tapered adapter bolts

Correct metric size, taper, thread and length bolts for attaching LSx adapters to LSx block. May work with other adapters.

Set of four

Part # 10716

$ 3.08

Chevrolet V8 / V6 4.3L metric Transmission to Engine bolt set.

Correct metric size, thread and length bolts for attaching the transmission to the engine. No washers should be used. Bright Zinc plated.

Part # 10717

$ 4.16

GM Transmission shim .125"

Shim for raising transmission mount .125" thick. Helps achieve proper engine and driveline angle. Zinc plated w/ gold iridite.

Each

Part # 10718

$ 4.15

Chevrolet SB V8 / V6 Poly engine bolt kit

Contains correct bolts, washers & nuts to install #10742 cushions to frame brackets. Zinc plated.

Part # 10723

$ 7.12

Chevrolet LSx engine frame adapter

70-92 F-Body, Camaro / Firebird, 78-87 G Body, Malibu, Monte Carlo etc.

One piece, slotted mounting holes, for installing LSx engines on stock or aftermarket front frames. With stock LS1 cushions, #123064, aftermarket or our #10740 Urethane replacement engine cushions. Satin black, Silver or Red powder coat finish. Use #10722 thru bolt kit.

Pair

Part # 10726

$ 78.87

1997 - 2002 Camaro / Firebird LSx

New installations or replacing heavy stock brackets. For installing 4.8, 5.3, 5.7, 6.0, 6.2 LSx engines. Using stock 5.7 LS1 engine cushions, # 123064, after market engine cushions or with our #10740 Urethane replacement engine cushions. Use #10722 thru bolt kit. These are significantly lighter than stock.

Pair

Part # 10728

$ -

Universal frame tabs

Tabs to install poly engine cushion to frame. .1875 material, .5" bolt hole, 3.5" center of bolt to tab end. 3" tab end width.

Pair

Part # 10732

$ 12.15

Universal frame tabs

Tabs to install poly engine cushion to frame. .1875 material, .5" bolt hole, 5.5" center of bolt to tab end. 3" tab end width.

Pair

Part # 10733

$ -

Chevrolet LS1 Universal engine mount U bracket.

Custom mounts using the stock cushion #123064 or our #10740 Urethane replacement engine cushions. .250" thick, right and left. Primered.

Pair

Part # 10734

$ 21.46

Chevrolet LSx engine Universal U bracket

Custom mounts using #10738 or #10742 Urethane engine cushions. 3.5" wide, .250" thick. Primered.

Pair

Part # 10736

$ 20.83

Chevrolet LSx, Urethane engine cushion

Direct replacement for stock LS1 5.7L factory engine cushions. Will fit 4.8, 5.3, 5.7, 6.0 LSx V8. Can also be used with #10732, #10733, #10734 brackets for a custom engine installation. Use #10712 & #10714 bolt kits. Satin black powder coat finish.

Pair

Part # 10740

$ 83.85

Chevrolet LSx, SB Gen II, Urethane engine cushion

Dual bolt pattern. Will fit all LSx V8 and SB Gen I / II, 4.3L V6 engines. 3.5" wide use with our #10732, #10736 3.5" wide, brackets for custom engine installations. LSx use 2x #10712 & 1x #10723. SB use #10721 & #10723 bolt kits. Satin black powder coat finish.

Pair

Part # 10742

$ 72.98

Universal U bracket single bolt. .5 bolt hole

U shaped bracket for welding to frame for transmission cross member or neatly hanging other items etc. 1.75" high, 1.375" wide, 1.45" deep, with .500 hole (12.7mm) centered. Requires welding. Zinc plated.

Pair

Part # 10785

$ 10.03

Universal Trans U bracket two bolt.

U shaped bracket for welding to frame for transmission cross member or other items etc. 1.75" high, 2.5" wide, 1.5" deep with 2 x .400 holes (10mm). Requires welding. Zinc plated.

See Note #1

Pair

Part # 10790

$ -

Transmission cushion bolt kit. TH 350 / 4 Speed

Contains correct domestic bolts, washers to install trans cushion to trans and adapter. Zinc plated.

Part # 10540

$ 4.51

Transmission cushion bolt kit. w/ 700R4

Contains correct domestic / metric bolts, washers to install trans cushion to trans and adapter. Zinc plated.

Part # 10545

$ 4.66

If you do not see what you need, e-mail tech@powerbyace.com We may have it or can make it.
